ANTHOS CLASSE L6

L6. Dental unit

EVOLUTION BEYOND EXPECTATIONS

Dental machine L6
Customization: Spaces and styles without limits

Evolved ergonomics

Streamlined shapes for a Continental module that features instrument tubing with increased elongation and instrument levers that minimise both vertical bulk and interference with the operating light. Each lever has individually adjustable traction force and balance. Whatever the treatment zone, positioning is easy and ergonomic thanks to the broad excursion of the new, more compact module arm system. For example, the transthoracic operating position can be reached with ease. The International module streamlines the dentist’s work thanks to excellent instrument accessibility and display visibility. A transthoracic version of the large tray holder module is also available, a useful aid during surgery sessions.

None
SideFlex technology

Equipped with SideFlex technology, standard on the Classe L9 and optional on the Classe L6, the instrument levers ergonomically follow the lateral movement of the tubing. The coupling reduces on- wrist traction and fatigue while optimising instrument recovery from every working position. The SideFlex instrument levers can also be removed for sanitation.

None
Side Delivery

The Side Delivery module perfectly combines optimal control panel visibility, instrument accessibility and organization of the operating space. The instrument layout, the result of modern design and analysis of dentists’ needs, ensures the best ergonomic grip of the instrument from any working position. Integrated motorisation (optional on the L6) in the module support column allows a 15 cm excursion, resulting in perfect adaptation to the working position of individual dentists. Mounted on the double articulated arm, the optional Professional tray holder ensures maximum efficiency, particularly in surgery and implantology.

Consolle

Touch LCD

The colour icons on the new control panel with LCD touchscreen display are designed for maximum user-friendliness. Activation of controls is immediate and the display shows clear information on the functions used. Each individual instrument and all integrated devices can be easily and quickly accessed.

Conservative

Micromotors with FIT technology

In addition to improvements that reduce both weight and noise, Anthos micromotors are now available with FIT (fluorescence-aided identification technique) technology to detect any composite materials in the teeth. Activating the UV LED lights incorporated in the micromotor, highlights those parts of the tooth treated with composite materials. In the case of old composite that needs to be reworked, this visual aid helps dentists shorten treatment times and operate more precisely and safely. It also provides excellent dental inspection support by clearly identifying any composite materials present.

Discover more
Endodontics

In this mode, the optional integrated endodontics system optimises the ergonomics of root canal treatment. Consists of micromotor, Autostop, Autoreverse and Autoforward functions and an electronic apex locator. During endodontic treatment, the colour LCD control panel displays key data to give the dentist full control of treatment. The software automatically sets torque and speed; alternatively, dentists can set values according to personal requirements.

Discover more
None
i-MMs micromotor

Light, compact and fully autoclavable. Fine, precise torque adjustment.

None
Apex locator

The apex distance is displayed on the Full Touch display during root canal instrumentation. The nearing of the apex is verified by the ENDO software. Once the apex is reached the Apex-Stop function interrupts micromotor rotation.

Patient chair

Available with a conventional seat or, on the L9, a knee-break, the patient chair is a key feature of the Classe L range. The padding, made of a durable material that retains its shape, comfortably seats patients of any build. The exclusive movement of the articulated seat ensures comfortable access for everyone.

In addition to an adjustable 2-axis version with mechanical lock, the Comfort model features a pneumatic lock system and 3-axis movement for freer, more precise positioning.

Optional Memory Foam padding offers patients an exclusive wellness experience. Swivel armrests offer comfort and feature inserts that match the upholstery.

Thanks to ISO-JOINT geometry, compensated backrest-seat movement maximises comfort and minimises sliding of the patient’s head.

Patient sensor

The patient sensor gathers and processes statistical data on dental unit use; the information is transmitted to the Di.V.A. and displayed on the dashboard.

Multi-connector system

There are no longer any obstacles to choosing the best practice layout. With the multi-connector system, replacing the old dental unit with a new Anthos model is work-free as the appropriate installation kit can be selected to match the existing power outlets at the time of order.

Lighting

Made-to-measure lighting

Proper lighting of the treatment area is a must. Perfect lighting of the oral cavity was the aim of the design choices to provide top-performance professional lighting fixtures. A choice between two different LED-source operating lights. Both feature a 3-axis joint, a hermetically sealed front panel, a “no touch” sensor to adjust light intensity and a dual reflector to ensure a broad spotlit and shadow-free work zone.

Venus Plus-L LED

Supplied as standard on Classe L6, this LED operating light features potentiometer-adjusted light intensity from 3,000 to 50,000 Lux and a colour temperature of 5000K. On-off control also via infrared sensor

None

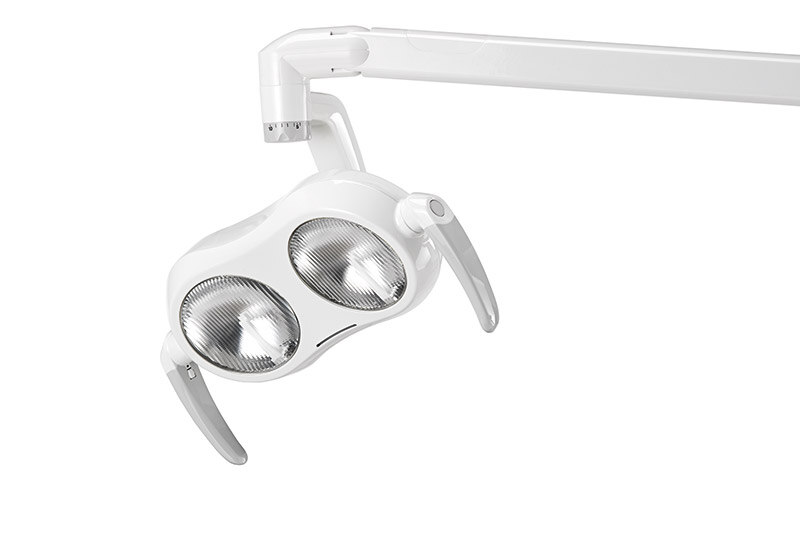

Venus LED MCT

The Venus LED MCT (Multi Colour Temperature), supplied as standard on Classe L9, allows the use of 3 different colour temperatures to ensure perfect lighting of the oral cavity in every circumstance. 4,300K warm light for surgical treatment, 5,000K neutral light for conservative dentistry and 5,500K cool light for realistic colour capture.

None
Sensor

Light intensity is adjustable up to 50,000 Lux and can be modulated via the “no touch” sensor.

None
Light colour

All temperature variations, from warm to neutral or cool and vice versa, can be activated with ease, ensuring a perfect view of the operating area according to the treatment being performed at all times. Optimal light beam efficiency minimises shadows in the oral cavity.

Hygiene

Safety in the surgery

A broad selection of integrated hygiene systems ensures workplace safety. Safety for patients, personnel and the dentist. In addition to automatic devices that prevent contamination of internal ducting, the design features effectively minimise the risk of cross-contamination. The colour LCD control panel gives the user full control over sanitisation cycle progress.

Discover more
Effective communication

Effective communication

Classe L perfectly integrates with the diagnostic tools used in digital workflows. X-ray imaging and image acquisition on board the dental unit document clinical conditions in real time.

The patient has a clear picture of his or her condition. Immediate and clear sharing of information strengthens the relationship with the dentist. This facilitates accurate evaluation of the patient’s state of health and treatment possibilities.

Discover more
