ANTHOS CLASSE A3

A3. Dental chair unit

IMPROVED
POTENTIAL

Improve potential, quality and performance

Improve potential
Classe A3 Plus: Anthos world improves your potential by adding the extra safety, reliability, flexibility and functionality that are key to meeting every clinical need.

Improve quality
Outstanding construction quality, cutting-edge technology, excellent operating ergonomics, patient comfort. Classe A3 Plus, a clever investment to secure advantages well beyond the usual standards.

Improve performance
Classe A3 Plus offers a wide range of specific operational features that raise the bar of the dental unit’s performance profile. The unit’s features can be customised for maximised results.

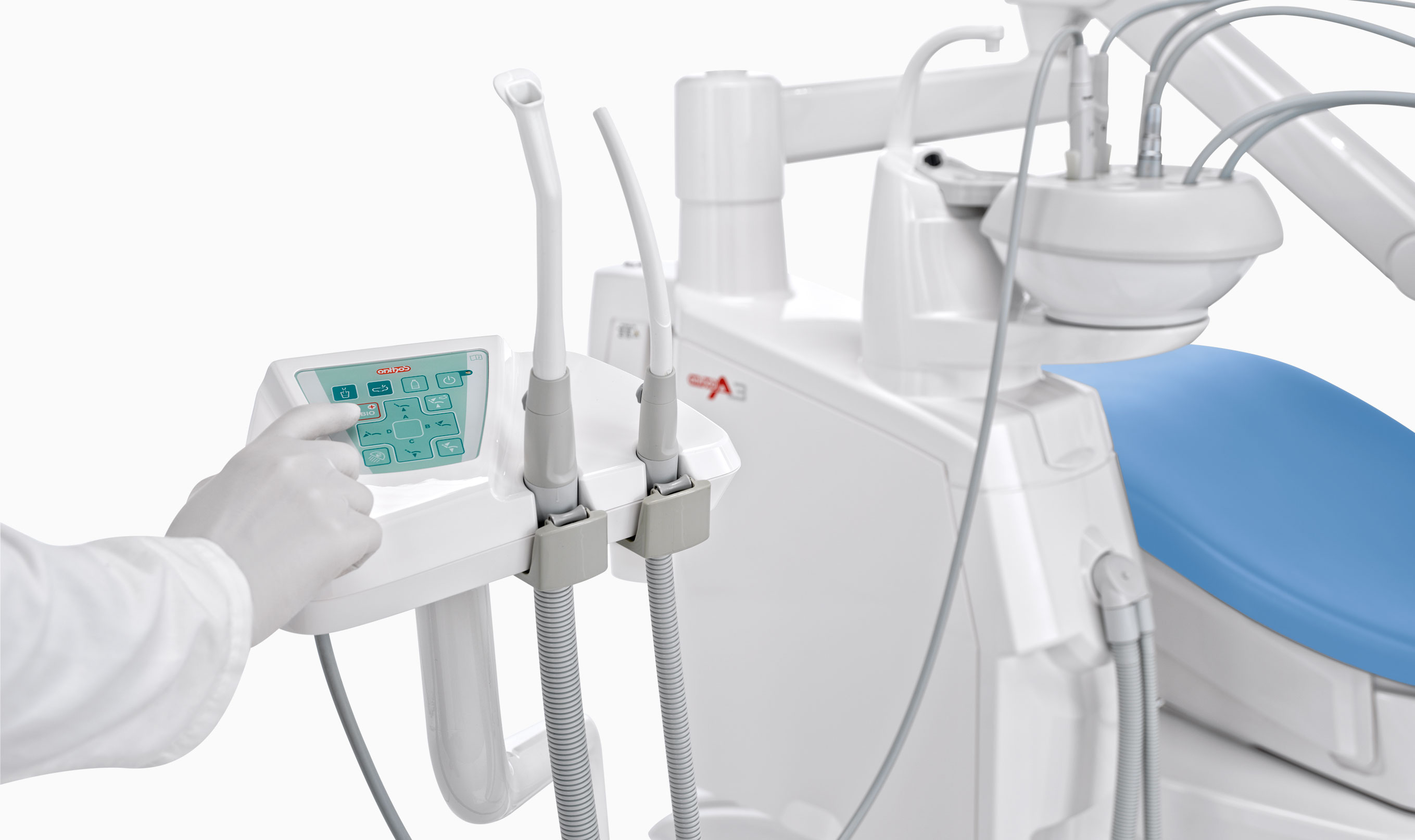

Control Panel

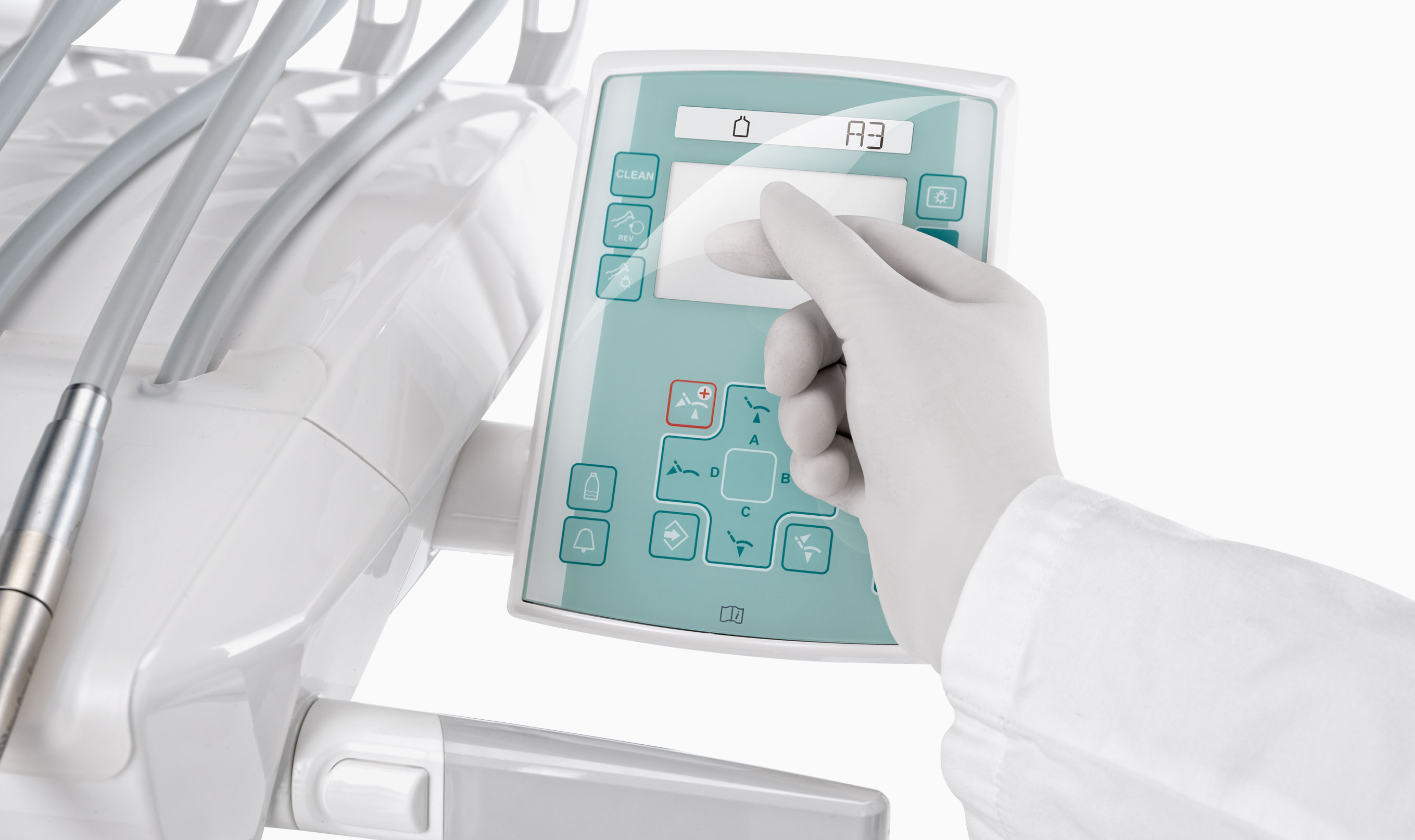

DIGIT DISPLAY

The Digit control panel layout, complete with X-ray viewer, is easy to read and includes several features. Access to the settings of each individual instrument, patient chair and integrated devices is fast, user-friendly and can be viewed on the alphanumeric display unit. Its design maximises operational ergonomics, making the operator’s work easier.

Performance control

The new instrument panel can be used to manage the unit’s operation modes and the parameters of each instrument, adapting them to the operator’s needs.
The lightweight, compact i-MMr micromotor can be optionally equipped with a powerful LED lighting source, and can be set to reach speeds between 100 and 40,000 rpm. The scaler, also available with integrated LED lighting and compatible with the best tips on the market, is adjustable to maximum power allowing the operator to find a good balance between fast scaling times and a good level of comfort for the patient.
All information relating to the instrument settings is displayed on the alphanumeric display. The same display shows information on the status of the performed disinfection cycles. Checking each activity is simple and immediate. The Clean function disables control panel operation when the glass surface is being cleaned, thus preventing unwanted actuation of the controls.

Design

International
Modern design and smart arrangement of the instruments for improved ergonomic usability: holding the handpieces is easy in any operating position.

Continental.
The redesigned dentist’s module and arms system allows the operator to work in any operating position. Classe A3 Plus responds ergonomically to every clinical need.

Flexible installation

To minimise the amount of adaptation work - or eliminate it altogether - during dental unit installation, there are two points for connection to the floor-mounted outlets. Under the leg rest or under the front of the unit body. This provides greater flexibility when replacing an old patient chair.

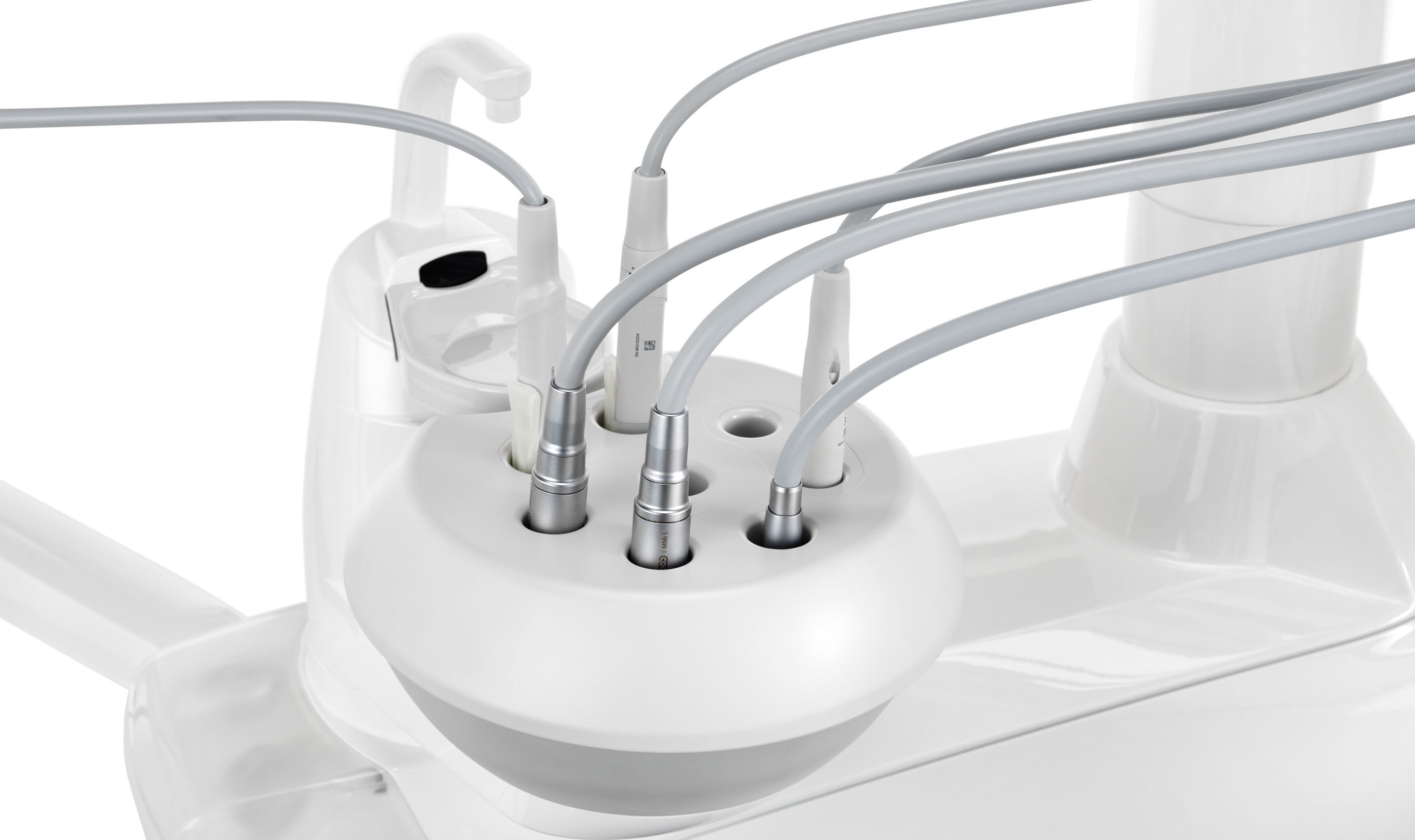

Instruments

FLUO micromotor

Available as an additional option on the LED micromotor, UV LED light highlights composite materials.

Micromotors

The supplied model i-MMr (3.3 Ncm) is also available with optional LED lighting. Speeds can set between 100 and 40,000 rpm.

Scalers

With or without LEDs, handpieces compatible with the best tips on the market.

Turbines and contra angles

Dentists can use a broad range of turbines and contra angles for specific dentistry tasks.

Syringes

3-way syringes feature ergonomic shaping. The metal syringe body and the tip (both straight and angled versions are available) can be removed and autoclaved.

Patient chair

Operational ergonomics and patient comfort are the natural outcome of the unit’s design. The upholstery is hard-wearing, seamless and available in 14 different colours. Optional Memory Foam padding offers patients an exclusive wellness experience.

Patient presence sensor

The patient chair can be equipped with a sensor (optional) that detects patient presence; this is connected to the stand-by function, thus reducing energy consumption when the patient chair is not actually occupied.

ISO-JOINT ergonomics

Thanks to new ISO-JOINT geometry, compensated backrest- seat movement maximises comfort and minimises sliding of the patient’s head.

Vertical travel and lifting capacity

A long vertical travel (37-80 cm) makes it easier to provide treatment in comfort and allows easy patient chair access for the elderly. The patient chair is certified to lift patients weighing up to 190 kg.

Backrests

A choice of two backrest options (narrow backrest/ wide backrest) meets all the dentist’s ergonomic needs. As always, the backrest guarantees patient comfort and easy access.

Lighting

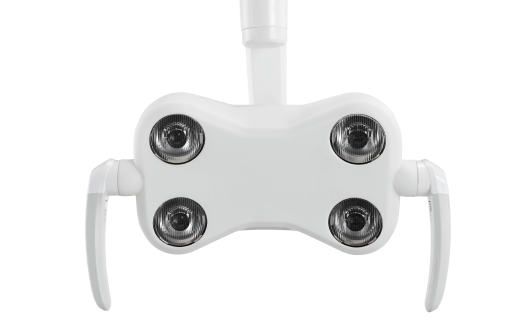

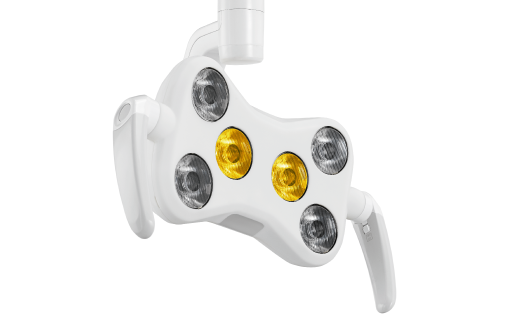

Operating lights

The broad selection of operating lights available on Classe A3 lets dentists choose between LED and halogen light sources.

Venus E LED

Supplied as standard, Venus E LED, equipped with a “no touch” switch-on sensor, has adjustable light intensity from 7,000 to 40,000 Lux and six LED lighting sources to minimise shadows on the treatment area.

Venus Plus

Venus Plus, high performance operating light with front protective screen and removable handles for easy disinfection. Three-axis- rotation ensures maximum manoeuvrability in all treatment situations. Equipped with a soft-start device, it has a colour temperature of 4900K and adjustable light intensity from 8,000 up to 35,000 Lux.

Venus Plus L-LED

Venus Plus L-LED, with hermetically sealed front screen, enables on-off control also via an infrared sensor and features adjustable light intensity from 3,000 to 50,000 Lux with 5000K colour temperature.

Hygiene

Hygiene

Safe clinical environment for the patients, the operating team and the dentist, thanks to a wide range of integrated, optional hygiene systems. Automatic devices that prevent contamination of internal ducting, and design features that minimise the risk of cross-contamination. Control panel with alphanumeric display for total control of the sanitisation cycle progress.

W.H.E.

Certified DVGW continuous disinfection system that prevents backflow contamination of the dental unit water supply and acts against all water-borne contaminants. The use of Peroxy Ag+ is recommended.

BIOSTER and FLUSHING

The automatic BIOSTER system performs intensive disinfection of instrument spray internal circuits with an antiseptic liquid (Peroxy Ag+). FLUSHING eliminates any stagnant liquid from the ducts with a quick rinsing action.

S.H.S.

Device that feeds water to the sprays as an independent alternative to mains water. Works via a reservoir filled with distilled water. Extremely useful where mains water is hard.

O.D.R.

As-standard mechanism that automatically emits an air jet to clean any residual liquids or solids from the handpiece after use.

Communication and diagnosis

Effective communication with the patient is based on easily shared diagnoses. Thanks to an integrated multimedia system, which includes an LED monitor and video camera installed on the dental unit, the dentist is able to effectively illustrate the treatment plan and show the images, radiographs and photos that have led to developing a diagnosis.

C-U2 HD camera

High- resolution images aid dentist- patient communication. Easy to use (no manual adjustment required), slim design means distal zones can be reached with ease.

22” LED Monitor

Full HD 16:9, 1920 x 1080 pixel flat screen monitor with IPS panel to aid viewing from any angle. LED light sources ensure optimal brightness and contrast.

Display

The monitor can display individual camera images or a mosaic of up to 4 images for quick comparisons.

Zen-X

X-ray sensor integrated in the dentist’s module, ready to use with USB cable. Able to capture HD images with low X-ray doses, the sensor comes in two different sizes. The sensor can be sanitised and is IP67 certified against water and dust infiltration.
